Panel: Chart Workspace¶

The Chart Workspace panel puts all node groups, materials, and objects in one workspace. The Node Editors and outliner can change focus depending on what area needs to be worked on.

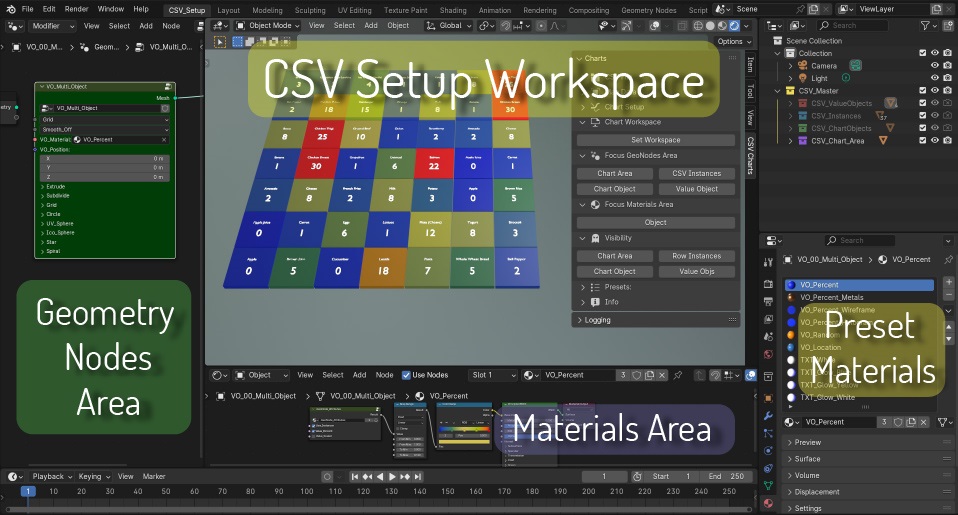

../_images/csv_charts_ws_full.jpg — The Chart Setup Workspace.¶

Panel Components¶

Button: Set Workspace¶

Create the CSV Setup Workspace.

../_images/csv_charts_panel_ws_a.jpg — The Chart Workspace Panel with Set Workspace selected.¶

Subpanel: Focus GeoNodes Area¶

../_images/csv_charts_panel_ws_focusgeonodes.jpg — The Focus GeoNodes Area Panel¶

Button: Chart Area¶

Focus the CSV_ChartArea Node group in the Geometry Nodes Area.

Button: Chart Object¶

Focus the CO_Multi_Object Node group in the Geometry Nodes Area.

Button: CSV Instances¶

Focus the CSV_Data Node group in the Geometry Nodes Area.

Button: Chart Area¶

Focus the VO_Multi_Object Node group in the Geometry Nodes Area.

Subpanel: Focus Materials Area¶

../_images/csv_charts_panel_ws_focusmats.jpg — The Focus Materials Area Panel¶

Button: Object¶

Selects the VO_00_Multi_Object in the Outliner. Use the material slots on the right in the Properties panel to change the active material.

Subpanel: Visibility¶

../_images/csv_charts_panel_ws_vis.jpg — The Visibility Panel¶

Button: Chart Area¶

Hides/Shows the CSV_Chart_Area Collection objects in the 3D View. Default: Visible

Button: Chart Object¶

Hides/Shows the CSV_ChartObjects Collection objects in the 3D View. Default: Hidden

Button: CSV Instances¶

Hides/Shows the CSV_Instances Collection objects in the 3D View. Default: Hidden

Button: Value Object¶

Hides/Shows the CSV_ValueObjects Collection objects in the 3D View. Default: Hidden

Usage¶

Using the CSV Setup workspace¶

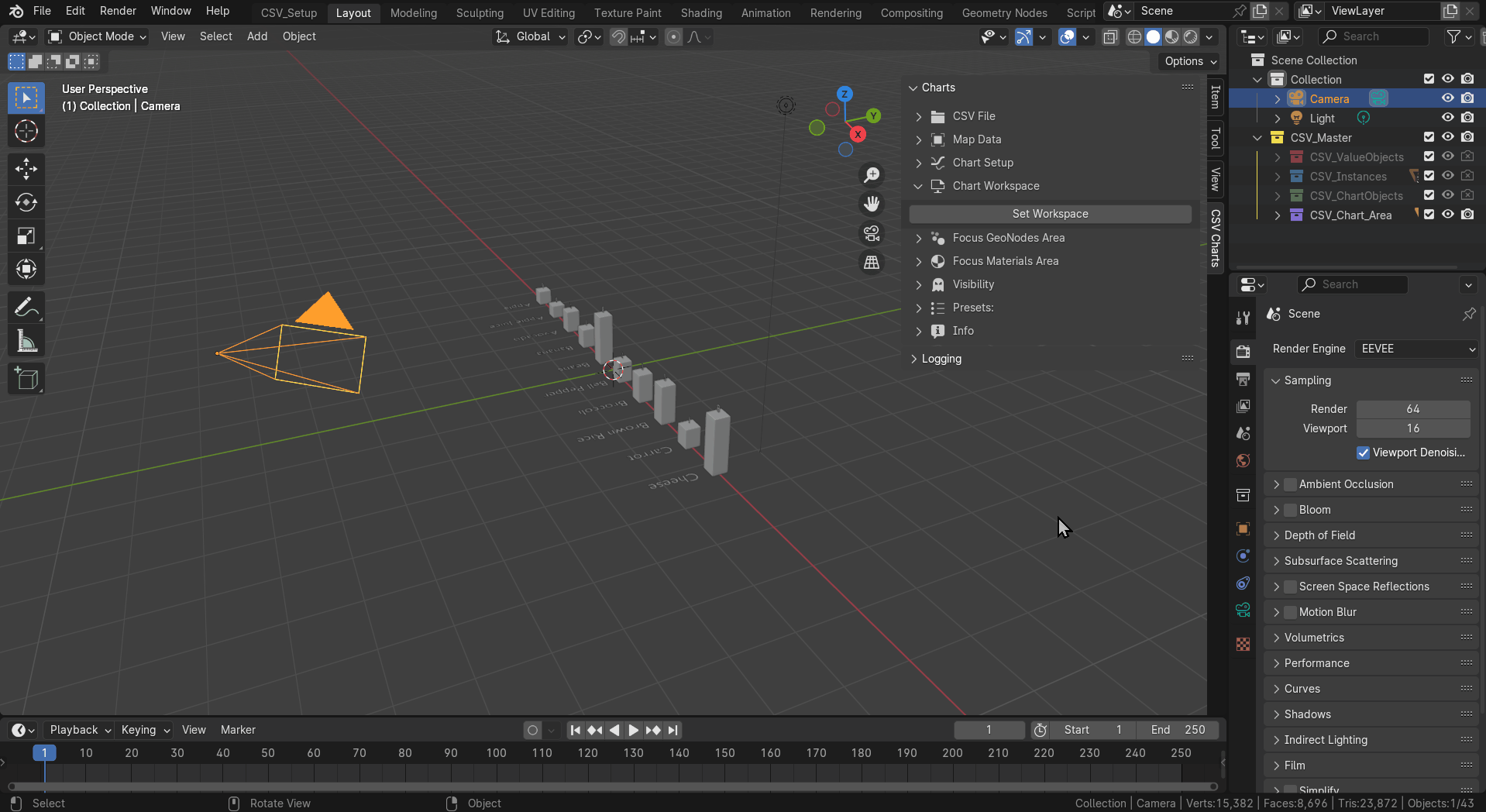

../_images/csv_ws_use.gif — The CSV Workspace Panel in use.¶
