Macro Entries¶
Select a Macro Entry¶

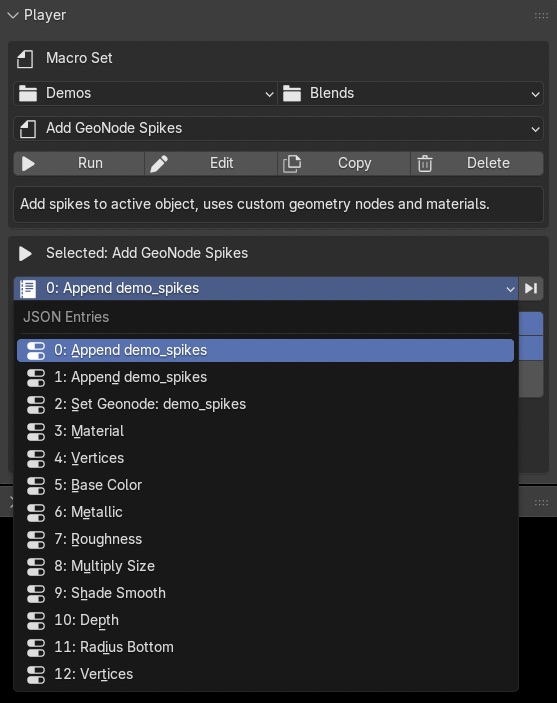

Expand the Macro Player panel.
Using the Macro Entry dropdown, select a macro.
The macro is now active.
View Macro Entry information¶
Expand the Macro Player panel.
Select a macro set.
Select a macro entry.
Click the ID icon (Macro Info button) below the Macro Entry dropdown.
A message will appear under the mouse cursor displaying information on the selected macro.
Recall a single macro¶
Expand the Macro Player panel.
Select a recall type using the dropdown at the top of the Macro Player panel.
Select a macro set.
Select a macro entry.
Click the Play icon (Recall Selected Macro button) to the far left of the Macro Entry dropdown.
The macro should recall with the values selected in step 1.
Delete a Macro Entry¶
Expand the Macro Player panel.
Select a macro set.
Select a macro entry.
Click the trash icon (Delete Macro Entry button) next to the Macro Entry dropdown.
The macro entry should now be deleted from the scene and the Macro Entry dropdown should refresh.
Rename a Macro Entry¶
Expand the Macro Player panel.
Select a macro set.
Select a macro entry.
Click the Edit Macro button.
In the Edit Macro Entry box click in the first textbox above the dynamic property.
Rename as desired.
Click on Apply in the Finalize box. The dropdown will refresh and the new name should be committed.
Edit Macro recall range¶
Expand the Macro Player panel.
Select a macro set.
Select a macro entry.
Click the Edit Macro button.
In the Edit Macro Entry box select a desired value using the dynamic property.
Click on Set Default, Set Min, or Set Max as needed.
Select a recall type using the dropdown at the top of the Macro Player panel.
Click on Test Recall to test the new values.
Click on Apply in the Finalize box. The dropdown will refresh and the new values should be committed.
