Panel: Preview CSV Data

The Map Data Panel is where csv data may be assigned to country objects.

The Preview CSV Data panel.

Panel Components

Dropdown Menu: Headers

Select and preview headers of the loaded CSV File. Changing the selection will update the next Rows dropdown menu

Dropdown Menu: Rows

Preview row data of the selected Header dropdown. Selecting a value does nothing.

Button: Print Data Types

Prints to the console and creates a user message listing the CSV Headers and row types. It is useful to know the value types before updating socket values, in case a socket type needs to be changed first.

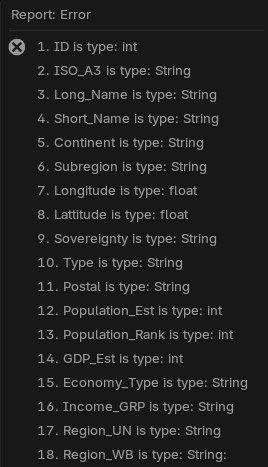

The Print Data Types Message.

Note

Even though the message contains the wording “Error” there is in actual fact no error. I have used this error method to display the message as a workaround for the standard Blender user info message. The standard info message does not print under the cursor, rather it prints at the bottom of the screen, cutting off parts of the message.

I will correct this in future versions…
