Panel: Countries Setup

The Country Setup contains the M_Objects Geometry Node input values.

Tip

These parameters are also available on the Geometry Nodes assigned to each country object.

../_images/mapper_panel_m_m_c_setup.jpg
../_images/mapper_panel_m_m_c_setup_2.jpg

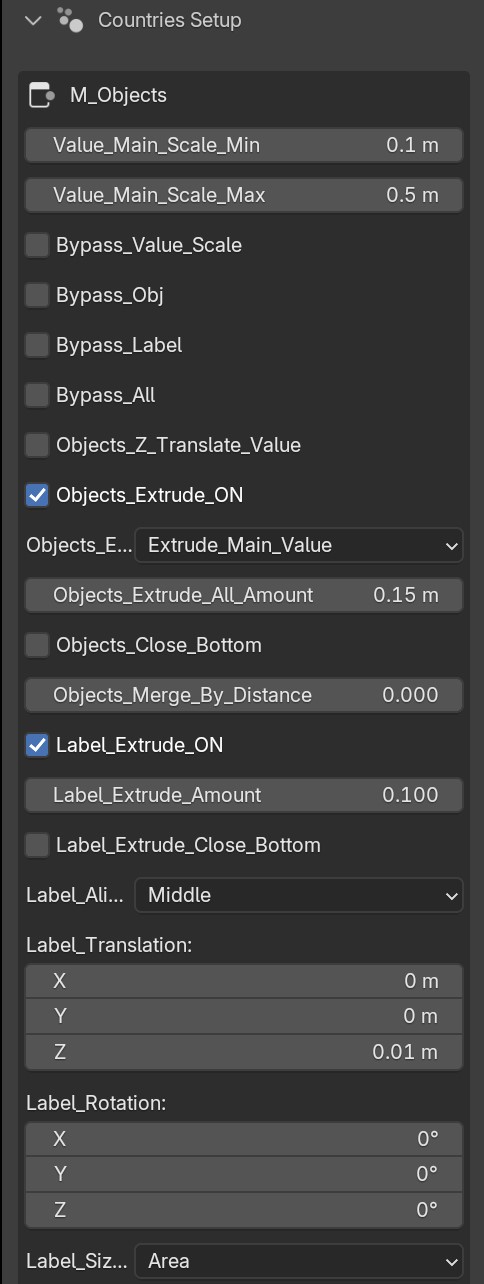

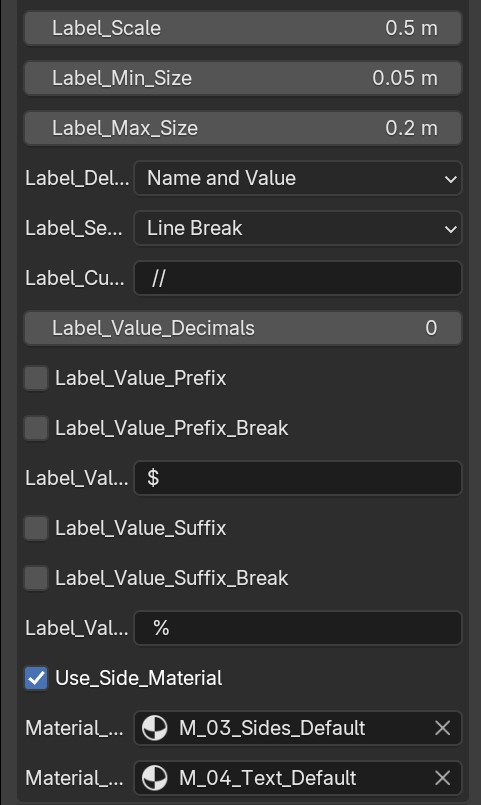

The Countries Setup panel.

Panel Components

Value Scale Range

Scales the Main Value min and max range. Use these to set extrusion and translation limits on country objects.

Bypass

Turn on or off certain components of the Geometry Nodes setup, for example Bypass_Label will turn off text labels.

Object Settings

Settings related to Country Meshes. Contains extrusion, translation, and merge by distance parameters.

Label

Settings related to Labels.

Contains extrusion, transform, alignment, delimiter, and size parameters.

Value Label

Settings related to Value Labels.

Contains decimals, prefix, and suffix parameters.

Materials

Settings related to Materials.

  • Turn on/off Side Materials after extrusion.

  • Assign a Side Material.

  • Assign a Label Material.

Usage

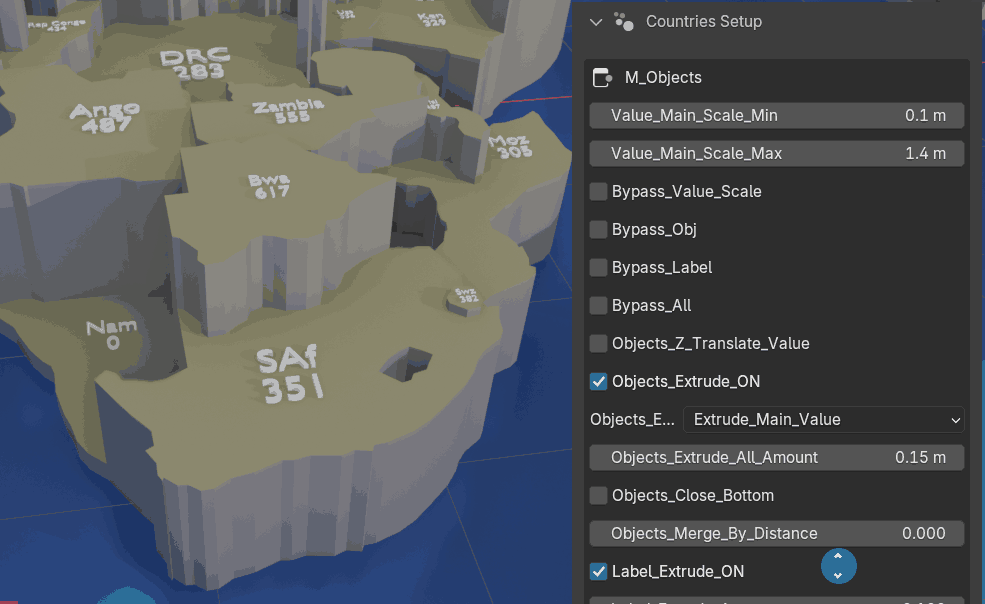

Bypass Label or country objects

../_images/m_how_to_obj_bypass.gif

Bypass components.

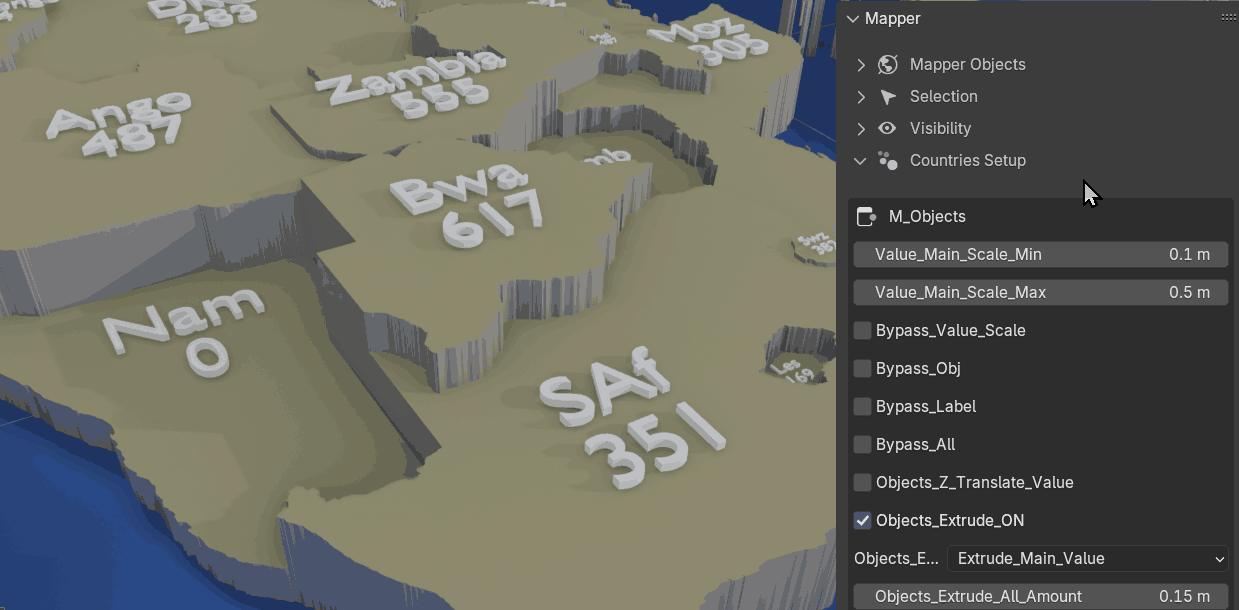

Extrude Country objects setup

  1. Set Objects_Extrude_On to On.

  2. Choose to translate objects with Objects_Z_Translate_Value by Main_Value.

  3. Choose Extrude Type.

  4. Choose Extrude amount (if type is all).

    if type is Extrude_Main_Value, then amount may be set using Value_Scale_Min and Value_Scale_Max.

  5. Choose to close the bottom of extruded objects.

../_images/m_how_to_obj_extrude.gif

Extrude setup.
