Chart Setup: Datapoint Object

Main controls for the Datapoint Object.

Components

Menu: Shape

Controls that modifies the Datapoint Object shape.

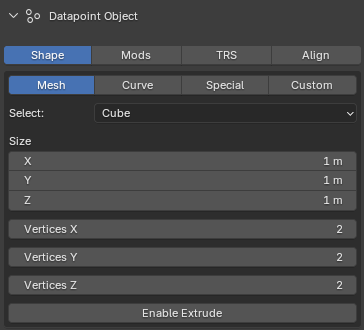

Datapoint Object Shape Menu.

List: Object Type

• Mesh: Mesh type objects.

• Curve: Curve objects (Converted to mesh).

• Special: Custom objects (Slice; Star; Spiked Sphere).

  Objects that respond to the datapoint value individually.

• Custom: Select a custom collection in the scene that contains the Datapoint Objects.

  It is possible to select both a range of objects or a single object in the chosen collection.

Menu: Mods

Controls that modifies the Datapoint Object.

Datapoint Object Mods Menu.

List: Mod

• Displace: Mesh Displacement by Texture.

  Use textures to displace the mesh geometry.

• Subdiv: Set subivision of mesh surface.

• Array: Create duplicates of datapoints based on value.

• Decimate: Merge mesh geometry by distance of geometry or camera.

• Boolean: Enable boolean operations on the Datapoint Object and Area Object.

Menu: TRS

Transform controls for the Datapoint Object.

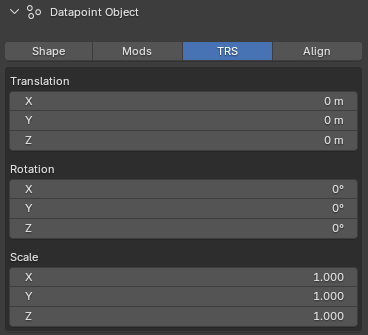

Datapoint Object TRS Menu.

Transforms the Datapoint Object and all objects aligned to it.

Menu: Align

Alignment and modification controls for the Datapoint Object.

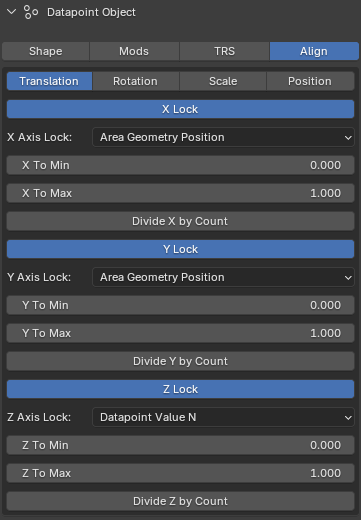

Datapoint Object Align Menu.

Menu: Transform (TRS)

• (XYZ) Locks: Alignment controls for Datapoint Objects.

  Alignment controls to align Datapoint Object to various components or values. Sub menus contain controls for translation, rotation, and scale.

• Position: Contains override controls for datapoint Origin and Size.

---

Usage Examples

Change the Datapoint Object Shape

In this example, the Datapoint Cube Mesh will be changed to Datapoint Spiral Curve.

1. Apply the preset:

   Full/Default_00/02_Examples/Object Shapes A


Change the object shape

2. Navigate to Chart Setup/Datapoint Object/Shape/Curve/Shape.

3. Select Spiral from the list of curves.

4. Set Float: Height to 1.0.

5. Navigate to Chart Setup/Datapoint Object/Shape/Curve/Mods.

6. Set the Mod selection to Profile.

7. Enable Toggle: Fill Caps.

Fix Alignment

8. Navigate to Chart Setup/Datapoint Object/Align/Position/Origin.

9. Disable Toggle: Lock Z.

Chart Setup: Change the Datapoint Object.

Align Datapoint Objects to Area Object

In this example, the Datapoint Objects will be aligned to the Area Object: Bezier Curve.

1. Apply the preset:

   Full/Default_00/02_Examples/Align Datapoint Obj to Area


Enable and choose Area object

2. Navigate to Chart Setup/Visibility.

3. Enable Toggle: Enable Area.

4. Navigate to Chart Setup/Area Object/Shape/Absolute/Curve.

5. Select Bezier Segment from the list of curves.

Align Datapoint Object

6. Navigate to Chart Setup/Datapoint Object/Align/Translation.

7. Set Toggle: X and Y Lock to enabled.

8. Set List: X and Y Axis Lock to Area Geometry Position.

9. Navigate to Chart Setup/Datapoint Object/Align/Rotation.

10. Set Toggle: Z Lock to enabled.

11. Set List: Z Axis Lock to Area Geometry Normal.

12. Navigate to Chart Setup/Area Object/Geometry/Alignment.

13. Enable Button: Use Curve Normal and set Normal Direction to Z.

14. Set Float: Normal Factor to 1.0.
