Chart Setup: Legend

Main controls for the Legend component.

Legend component.

Components

Menu: Main

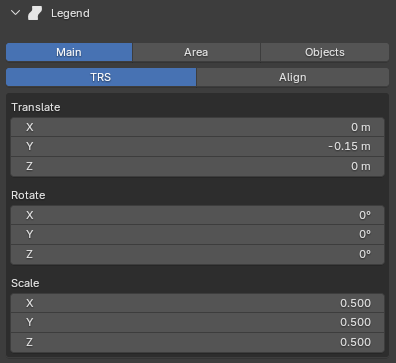

Controls that modifies the Legend component alignment and transforms.

Menu: TRS

Transfrom controls for the Legend component.

Menu: Align

• Off: Legend align to Legend Transforms.

• Bbox: Legend align to Bounding Box components.

  Controls for aligning the Legend component to various chart components.

• Cam: Controls to align Legend to Active Camera.

Menu: Area

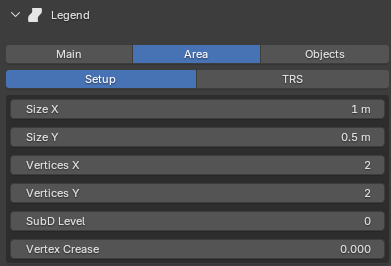

Legend Area Controls.

Controls for the Legend Area shape (Setup) and transforms (TRS)

Menu: Objects

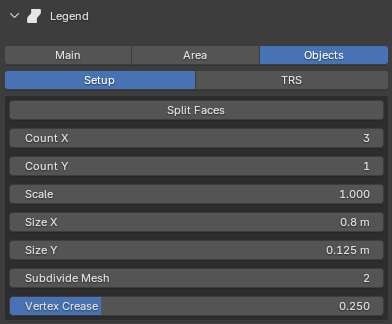

Legend Objects Controls.

Controls for the Legend Objects shape (Setup) and transforms (TRS)

---

Usage Examples

Align Legend to Active Camera

In this example, the Legend Object will be connected to the active camera and copy it’s transforms.

1. Apply the preset:

   Full/00_Default/00_Default/00_Default


2. Activate the camera view (3D Viewport/View/Cameras/Active Camera).

3. Navigate to Chart Setup/Legend/Main/Align.

4. Set Menu: Align to Cam.

5. Enable Toggle: Translation to Cam and Toggle: Rotation to Cam.

6. Set Position Offset to (0,0,0)

7. Navigate to Chart Setup/Legend/Main/TRS.

8. Set Translate (0,-0.5,-1), or to preference.

9. Set Scale (1,1,1), or to preference.
